The MSI B560 TOMAHAWK WIFI is a feature-rich ATX motherboard supporting 10th & 11th Gen Intel processors. It offers impressive memory capabilities with 4 DDR4 slots supporting up to 128GB at 5066MHz. The board features 3 M.2 slots with PCIe 4.0 support, 6 SATA ports, and comprehensive connectivity including Wi-Fi 6E, Bluetooth 5.2, and 2.5G LAN. Notable features include USB 3.2 Gen 2x2 Type-C, RGB support, and M.2 Shield Frozr cooling.
Specifications
Price
Shopee
RM236.50
112 products(91 items sold out)
PG Mall
RM369.00
1 product
Lazada
RM470.26
1 product
Aliexpress
RM1,596.78
1 product
Specifications
Basic information
Brand
MSI
Model
B560 TOMAHAWK WIFI
Socket type
LGA1200
Supported processors
10th & 11th Gen Intel® Core™ i9/i7/i5/i3, Pentium® Gold, Celeron®
Chipset
Intel® B560
Form factor
ATX
Memory
Max memory capacity
128
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
5066
Memory speed unit
MHz
Memory type
DDR4
Xmp support
Yes
Expansion slots
M2 slots
[{'quantity': 3, 'interface': 'PCIe 4.0/3.0 & SATA', 'max_speed': 'PCIe 4.0 x4'}]
Pcie slots
[{'type': 'PCIe x16', 'quantity': 2, 'speed': 'PCIe 4.0/3.0'}, {'type': 'PCIe x1', 'quantity': 1, 'speed': 'PCIe 3.0'}]
Storage
Sata ports
6
Sata speed
6Gb/s
Features
Bios features
Intel® Optane™ Memory Ready
Debug features

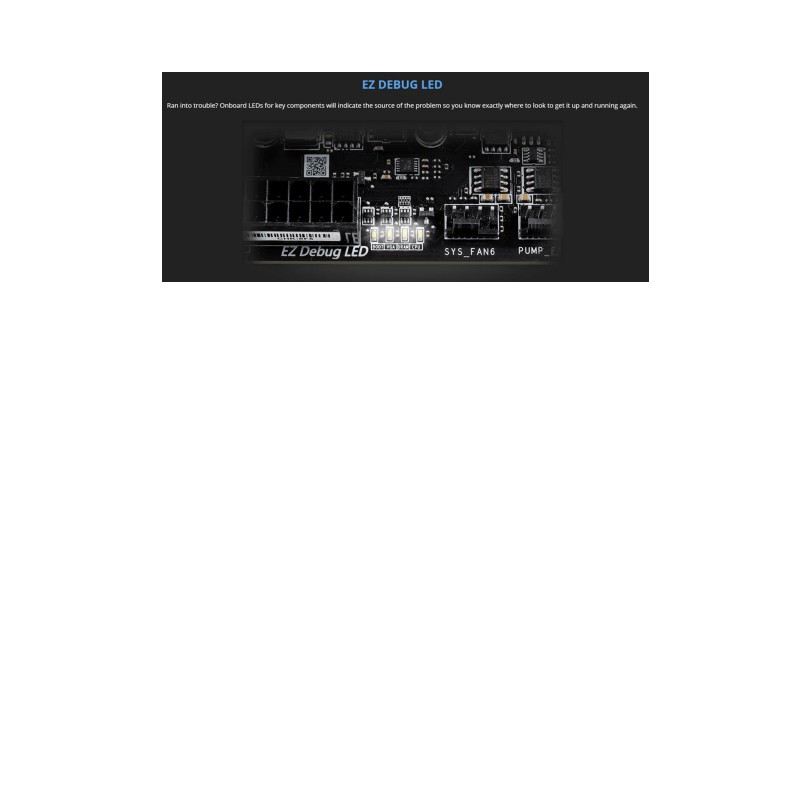

EZ Debug LED
Rgb support
Yes
Connectivity
Networking
Ethernet
Realtek® 2.5G LAN
Wifi
Intel® Wi-Fi 6E AX210
Bluetooth
5.2
Usb ports
[{'type': 'USB 3.2 Gen 2x2 Type-C', 'quantity': 1, 'speed': '20Gbps'}, {'type': 'USB 3.2 Gen 1 Type-A', 'quantity': 4, 'speed': '5Gbps'}, {'type': 'USB 2.0', 'quantity': 4, 'speed': '480Mbps'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
30.5
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Heatsinks
M.2 Shield Frozr
Audio
Channels
7.1-channel
Codec
Realtek® ALC897
Features
HD Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
