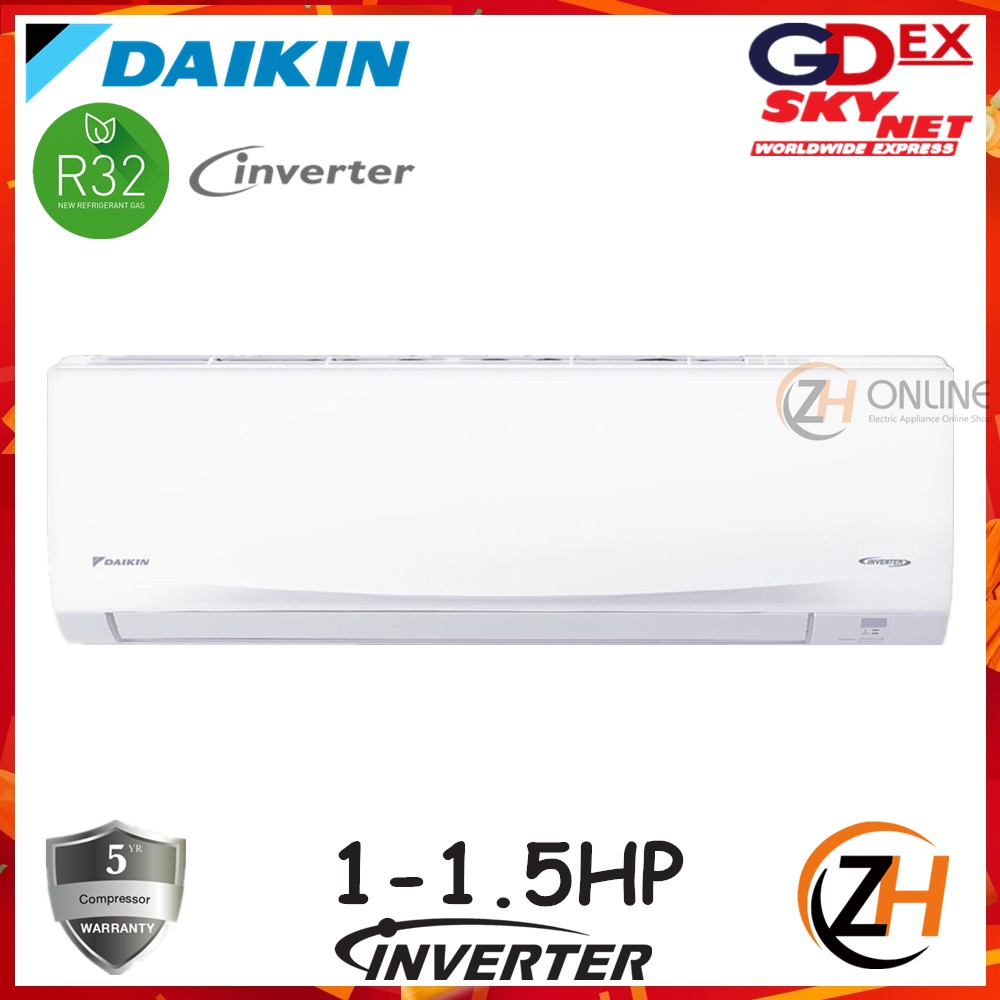

The Daikin FTKQ35T is a versatile wall-mounted split system air conditioner offering both cooling (3.5kW) and heating (4kW) capabilities. With an impressive energy efficiency rating of 5 and CSPF of 4.5, it features smart Wi-Fi control and comprehensive air management through dual-swing functionality. Operating at a whisper-quiet 19dB on low setting, it includes advanced filtration with dust and anti-bacterial filters. The R32 refrigerant system can handle pipe lengths up to 15m with a 10m height difference.
Specifications
Specifications
Basic information
Brand
Daikin
Application
Residential
Type
Split System Air Conditioner
Features
Air flow control
Horizontal swing
Yes
Vertical swing
Yes
Filtration system
Dust Filter, Anti-Bacterial Filter
Operation modes
Cooling, Heating, Fan, Dry
Protection features
Auto Restart, Anti-Freeze Protection, Self-Cleaning
Smart features
Wi-Fi Control, Timer Function
Special functions
Turbo Mode, Quiet Mode, Sleep Mode
Technical parameters
Airflow
Maximum air flow rate
10
Noise level
High
45
Unit
dB
Low
19
Air flow rate unit
m³/min
Electrical
Power supply
220-240V, 50Hz
Connection wire
3-core, 1.5mm²
Operating range
Temperature
Unit
°C
Minimum
-15
Maximum
46
Piping
Maximum height difference
10
Liquid pipe diameter
6.35
Gas pipe diameter
12.7
Pipe diameter unit
mm
Additional refrigerant charge
0.02
Maximum pipe length
15
Length unit
m
Refrigerant
Charge
0.8
Charge unit
kg
Type
R32
Installation
Installation area unit
m²
Minimum installation area
0.5
Mounting type
Wall Mounted
Warranty
Coverage type
Parts and Labor
Duration
5
Duration unit
years
Certifications
Environmental certification
Energy Star
Safety certification
SIRIM
Performance specifications
Cooling
Unit
kW
Capacity range
Minimum
1
Maximum
4
Power consumption
0.9
Rated capacity
3.5
Coverage area
Unit
ping
Minimum
10
Maximum
20
Dehumidification
Unit
l/h
Capacity
1.8
Energy efficiency
Annual power consumption
800
Energy efficiency rating
5
Power consumption unit
kWh/year
Cooling seasonal performance factor
4.5
Heating
Unit
kW
Capacity range
Minimum
1
Maximum
4.5
Power consumption
1
Rated capacity
4
